Erwin: A Tree-based Hierarchical Transformer for Large-scale Physical Systems
Max Zhdanov, Max Welling, Jan-Willem van de Meent
A ball tree is a hierarchical data structure that recursively partitions points into nested sets of similar size, where each set is represented by a ball that covers all the points in the set. The input is a point cloud, and the tree is built recursively:
The main idea of the paper is to compute attention within the ball tree partitions. Once the tree is built, one can choose the level of the tree and compute attention (Ball Tree Attention, BTA) within the balls in parallel:
Since Ball Tree Attention is localized, we progressively coarsen and then refine the ball tree to aggregate global information following a U-Net-like structure of the model:

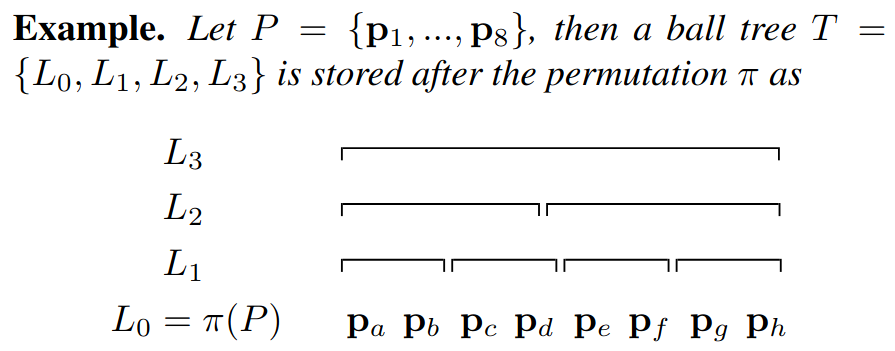

The ball tree is stored in memory contiguously - at each level of the tree, points in the same ball are stored next to each other:
This property is critical and allows us to implement key operations described above simply via .view or .mean:
# Ball Tree Attention
x_partitioned = x.view(num_balls, ball_size, dim) # partitioning into balls before attention
x = MHSA(x_partitioned).view(-1, dim) # compute MHSA and reshape back
# Pooling (coarsening)
pos_coarsened = pos.view(num_balls, ball_size, dim).mean(1) # pooling to balls' centers
pooling_fn = nn.Linear(dim * ball_size, dim) # use learnable pooling to pool features
x_coarsened = pooling_fn(x.view(num_balls, ball_size * dim)) # (num_balls, dim)Since ball partitions are disjoint (i.e. each point can be assigned to a single ball only), we need to enable cross-ball interaction. This would allow information to leak from one ball to another, effectively increasing the receptive field of a single layer. Our solution is inspired by SwinTransformer, however, instead of sliding windows we use rotating ball trees. By alternating between original rotated ball tree configurations, we make balls exchange information.
Below are examples of ball trees that we built in our experiments - polypeptides in molecular dynamics and cars in ShapeNet-Car:
Erwin expects as inputs:
node_features: a ragged array of node features, shape: [num_points, num_features]node_positions: a ragged array of node positions, shape: [num_points, num_dimensions]batch_idx: batch assignment for each node, shape: [num_points] (e.g. [0, 0, 1, 1, 1, 2, 2, ...])edge_index: (optionally) connectivity of shape [2, num_edges]radius: (optionally) float radius to build radius connectivity (used when edge_index is not given)
import torch
from models import ErwinTransformer
config = {
'c_in': 32,
'c_hidden': 32,
'enc_num_heads': [2, 4, 8, 16, 32],
'enc_depths': [2, 2, 2, 6, 2],
'dec_num_heads': [4, 4, 8, 16],
'dec_depths': [2, 2, 2, 2],
'strides': [2, 2, 2, 2],
'ball_sizes': [128, 128, 128, 128, 128],
'dimensionality': 3, # 3D space
'mlp_ratio': 4,
'rotate': 0, # disable cross-ball interaction
}
model = ErwinTransformer(**config).cuda()
bs = 16
num_points = 2048
node_features = torch.randn(num_points * bs, 32).cuda()
node_positions = torch.rand(num_points * bs, 3).cuda()
batch_idx = torch.repeat_interleave(torch.arange(bs), num_points).cuda()
radius = 0.05 # build radius connectivity if not given otherwise
out = model(node_features, node_positions, batch_idx, radius=radius)Due to the simplicity of implementation, Erwin is blazing fast. Below is the benchmark for the given configuration with batch size 16 and a varied number of points in each point cloud in the batch. On a single NVIDIA RTX A6000 (48 GB):
| nodes per point cloud | 1024 | 2048 | 4096 | 8192 | 16384 | 32768 |
|---|---|---|---|---|---|---|
| Fwd | 15.2 ms | 17.3 ms | 31.6 ms | 79.7 ms | 189 ms | 459 ms |
Fwd (w/ torch.compile) |
5.55 ms | 11.6 ms | 30.2 ms | 63.2 ms | 127 ms | 222 ms |
| Fwd + Bwd | 55.0 ms | 65.4 ms | 114 ms | 267 ms | 646 ms | OOM |
Fwd + Bwd (w/ torch.compile) |
26.4 ms | 45.4 ms | 114 ms | 232 ms | 456 ms | OOM |
Erwin has a minimal number of dependencies:
- PyTorch (version 2.5.0, CUDA 12.4)
- NumPy
- einops
- Cython
- torch-cluster (optional, is used to build a graph in the Embedding module)
A virtual environment named erwin can be created using uv
and activated with:
bash setup.sh
If you only want to play with Erwin and don't want to install additional dependencies (tensorflow, spconv, etc.) use
bash setup.sh --minimal
to install uv run:
curl -LsSf https://astral.sh/uv/install.sh | sh
We provide a fast, parallelized implementation of Ball Trees in C++ and Cython. The code is optimized for batched data coming in the form of a ragged array.
from balltree import build_balltree
batch_size, num_points = 16, 8000
points = torch.rand(num_points * bs, 2, dtype=torch.float32, device='cuda')
batch_idx = torch.repeat_interleave(torch.arange(bs, device='cuda'), num_points)
tree_idx, tree_mask = build_balltree(points, batch_idx) # Returns tensors on the same deviceWe compare the runtime of our implementation against the scikit-learn implementation + joblib. In each experiment, batch size is set to 16 and each element of the batch has a fixed number of nodes (columns of the table). Computed on 16 AMD EPYC™ 7543 CPUs.
| Implementation | 1k nodes | 2k nodes | 4k nodes | 8k nodes | 16k nodes |
|---|---|---|---|---|---|
| sklearn + joblib | 15.6 ms | 16.3 ms | 21.2 ms | 24.1 ms | 44.0 ms |
| Ours | 0.32 ms | 0.73 ms | 1.54 ms | 3.26 ms | 6.98 ms |
| Speed-up | 48.8× | 22.3× | 13.8× | 7.4× | 6.3× |
- C++ compiler with C++11 support
- Python 3.6+
- Cython
- NumPy
To run/replicate experiments, you will need to download:
- Cosmology dataset (7 GB)
- Single-chain polymer dataset (MD) (13 GB) + splits
- EAGLE dataset (270 GB)
- ShapeNet-Car dataset (2 GB)
For the single-chain polymer dataset, download all files and move them to the data folder that contains the splits folder.
Training scripts are given in experiments. For example, to train on the molecular dynamics task:
cd experiments
python train_md.py --use-wandb 1 --size medium --model erwin --data-path "path/to/data/dir"
In case you have any ideas for future work based on Erwin or if you see possible efficiency improvements, please let me know. I would be happy to discuss them :)
@misc{zhdanov2025erwintreebasedhierarchicaltransformer,
title={Erwin: A Tree-based Hierarchical Transformer for Large-scale Physical Systems},
author={Maksim Zhdanov and Max Welling and Jan-Willem van de Meent},
year={2025},
eprint={2502.17019},
archivePrefix={arXiv},
primaryClass={cs.LG},
url={https://arxiv.org/abs/2502.17019},
}
